MidNite Solar MNBIGBABY Big Baby Box Enclosure
Product details
| Management number | 215627902 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 215627902 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

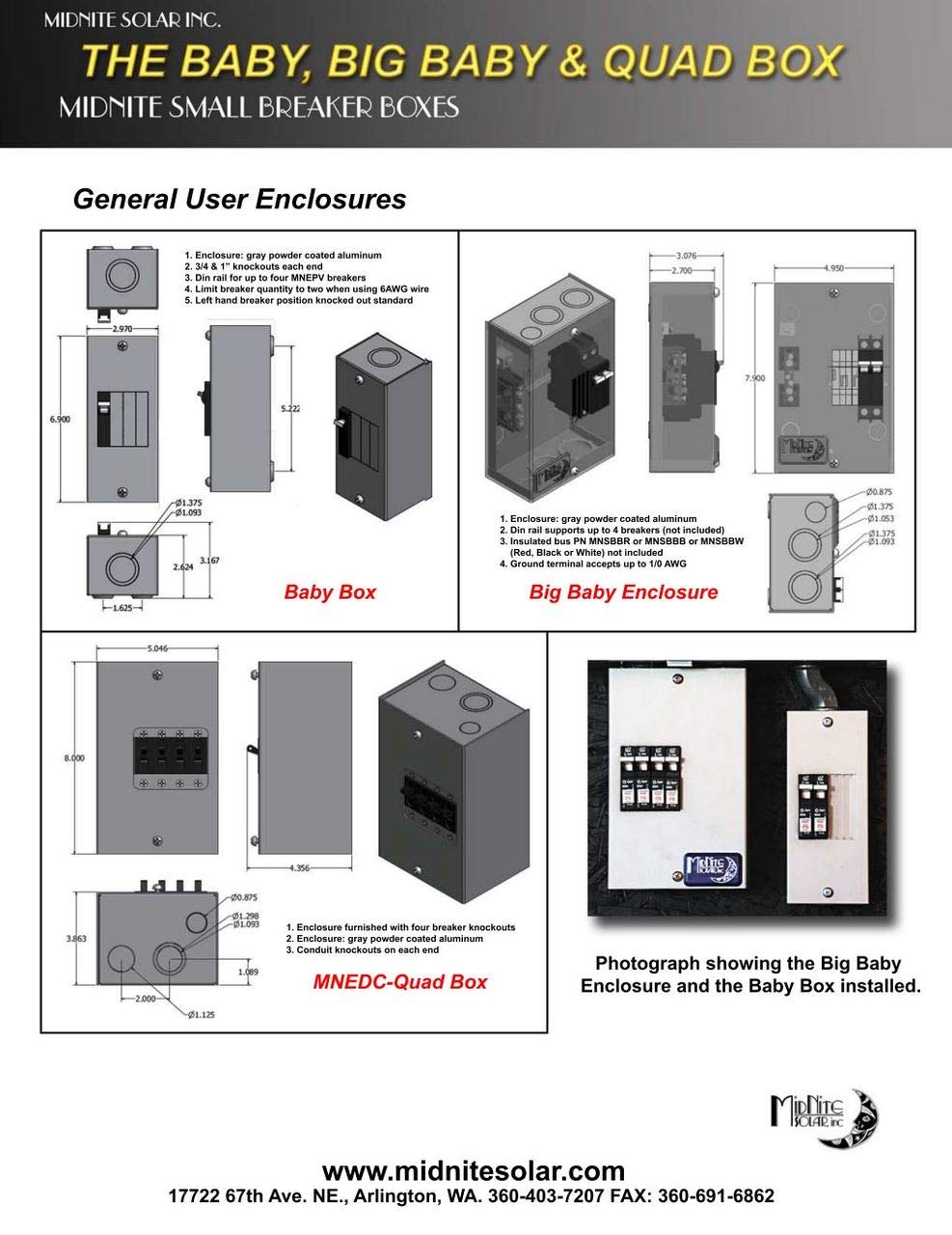

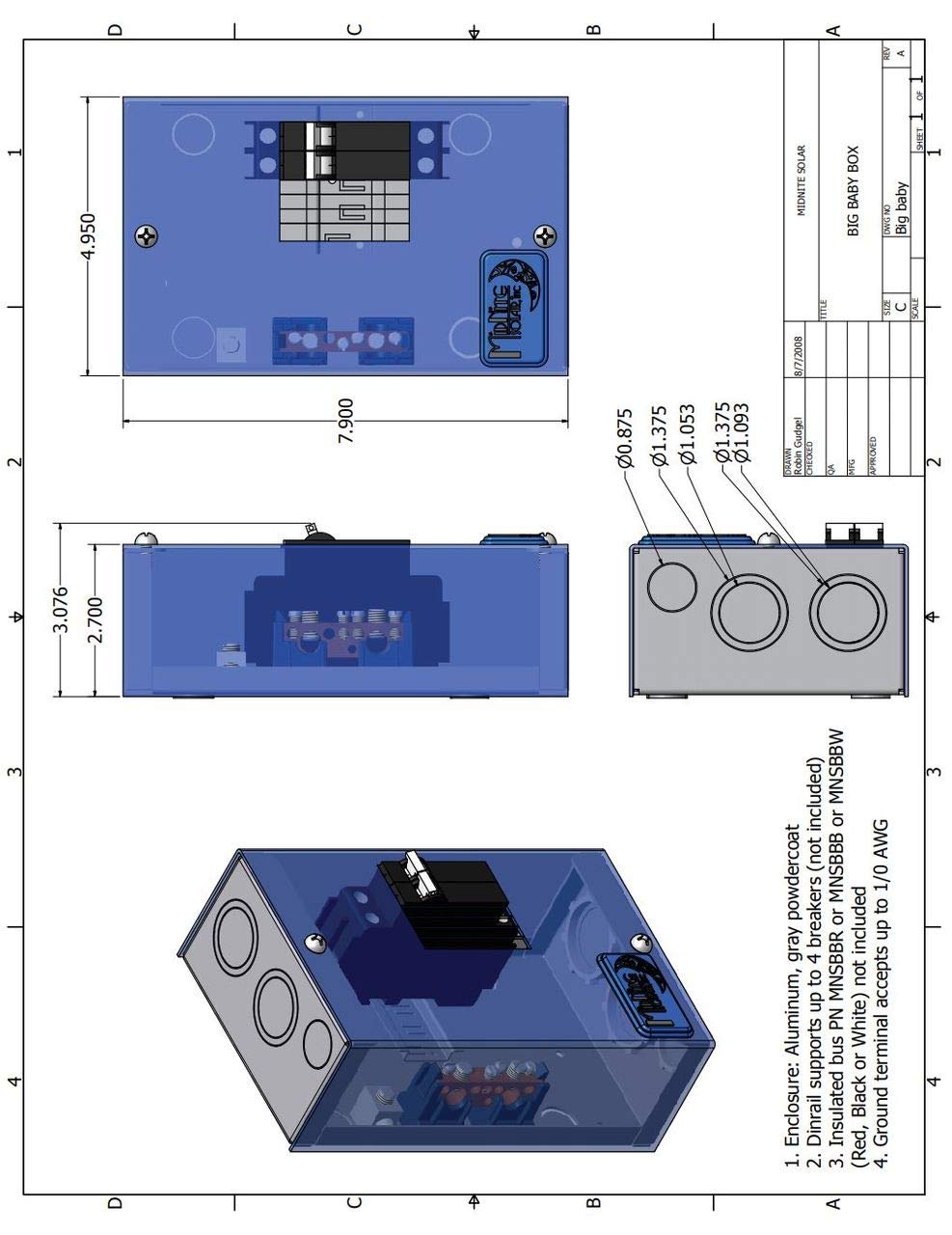

MidNite Solar MNBIGBABY Big Baby Box Enclosure The original Baby Box has been a huge success in filling an industry need. We have created an enclosure called the Big Baby to over come the Baby Box smallness allowing for a ETL listed 4 position din rail box. This box is about twice as wide as the baby box giving you more wiring room. It also includes a ground box lug and mounting provisions for our short insulated bus bar as well as a ground bus bar. A dimensional drawing is under Attachments below. General use powder coated aluminum enclosure - holds up to four 13mm wide din rail breakers from 1 - 63 amps.
- Environmental Rating - Type 1 (Indoor)
- Big Baby’s DIN rail accepts up to 4 breakers (not included)
- Max. Wire - breakers 6 AWG | Max. AC Voltage - 277VAC | Max. DC Voltage - 300VDC
- Listed by ETL for US & Canada | Made in the USA | Warranty - 5 yrs.
- Size: 8"L x 5"W x 3"D | Box Size: 9"L x 6"W x 4"D | Weight: 3 Lbs
| UPC | 650267219136 |
|---|---|
| Color | Gray |
| Style | Compact |
| Material | Aluminum |
| Brand Name | MidNite Solar |
| Finish Type | Powder Coated |
| Manufacturer | Outback Power |
| Model Number | MNBIGBABY |
| Installation Type | Screw-In |
| Warranty Description | 5 Year Manufacturer |
| Item Dimensions D x W x H | 3"D x 5"W x 3"H |
