Enttec D-Split 70578 DMX 4 Port Isolated Splitter / Isolator (3/5-Pin)
Product details
| Management number | 215958894 | Release Date | 2026/04/19 | List Price | $53.20 | Model Number | 215958894 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The D-SPLIT is a 1 to 4 DMX 512 splitter, allowing you to send your signal in different directions or to increase the number of fixtures that you can send your signal to (DMX signal is limited to running through 32 fixtures). Technical Specifications: 4 DMX outputs: two 5-Pin and two 3-Pin outputs for greater flexibility. Lightweight and portable. 1 DMX input: D-Split offers flexibility of 3-Pin and 5-Pin male connector for connection to only 1 DMX input. All outputs are optically isolated (protects against up to 1000V of stray voltage). DMX512-1990 compatible. Controls up to 512 channels Daisy chain via input ports without utilizing any output ports LED indicators when powered. External power supply (included). DMX pass through Wide voltage range Stealth design 3-year warranty Box Contents: D-Split Power supply with UK/EU/S/AU adaptor TS35 DIN clip & 2x mounting screws

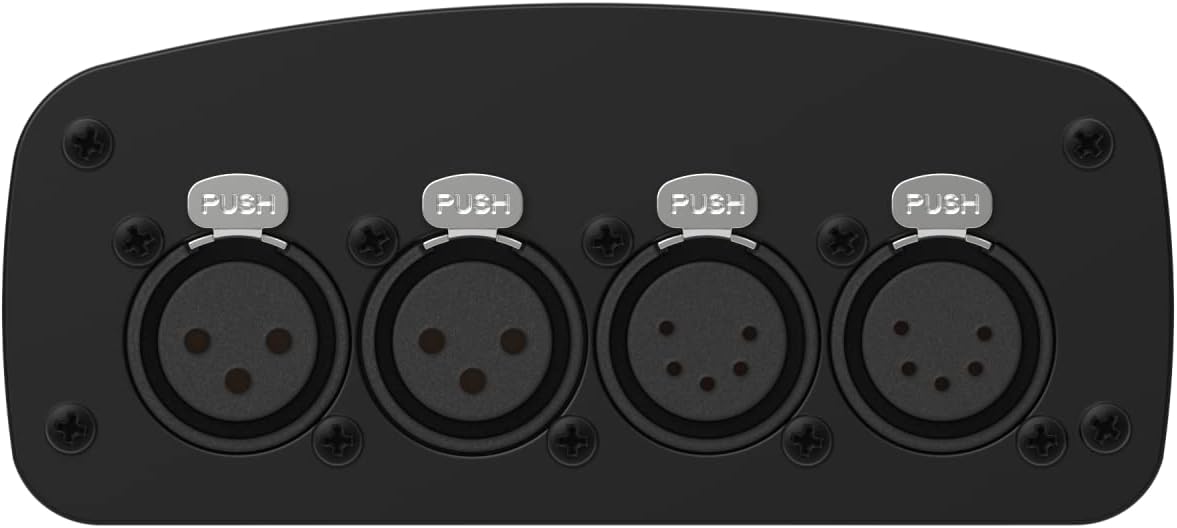

- Four DMX outputs: 2 x 3-Pin + 2 x 5-Pin outputs for greater flexibility
- One DMX input: 3-Pin and 5-Pin male connector for connection to only 1 DMX input
- All outputs are optically isolated - protects against up to 1000V of stray voltage
- Controls up to 512 channels
- DIN rail mounting solution
| Color | Black |
|---|---|
| Shape | Rectangular |
| Voltage | 12 Volts |
| Brand Name | Enttec |
| Style Name | Modern |
| Item Weight | 1 Pounds |
| Finish Types | Painted |
| Manufacturer | ENTTEC |
| Model Number | 70578 D-Split |
| Power Source | Corded Electric |
| Material Type | Stainless Steel |
| Mounting Type | DIN rail mount |
| Shade Material | Acrylonitrile Butadiene Styrene |
| Light Source Type | Led |
| Batteries are Included | No |
| Number of Light Sources | 4 |
| Item Dimensions L x W x H | 4.6"L x 3.4"W x 2"H |
| Light Source Special Features | Optically isolated outputs (protects against up to 1000V of stray voltage) |
| Manufacturer Warranty Description | 2-year warranty. |
| Global Trade Identification Number | 09351074003444 |
